SPECIFICATIONS

Brand Name: GTBOX

Funtion: None

Hign-concerned Chemical: None

Interface Type: USB Type-C

Length: 22.5

Model Number: G-DOCK

Origin: Mainland China

Package: Yes

Ports: 4,1

Attention:

AOOSTAR AG02 and GTBOX G-DOCK are the same product, but the brand logo is different.

Do Not Support:

1. Mac

2. ASUS ROG Ally (1st Generation)

3. ASUS ZenBook Full Series Laptops
4.All mini PCs and handheld game consoles of 6800U and 7735U series.
Note: The Z1 processor requires the installation of official drivers.

Support:

It supports ASUS ROG handheld devices from the second generation onwards. It is compatible with CPUs from the 7840U series and later.

Please note that under power-on conditions, do not hot plug or unplug the OCulink cable,as there is a risk of damaging the computer.

Caveats:

1) The Oculink interface does not support hot-swapping, so be sure to turn off the power when plugging or unplugging cables!
2) The Oculink port has a “fixed lock” design, when unplugging the OCULINK port, you need to press the switch to unlock it.
3）The built-in power supply is for Dock use only, please do not use it for other purposes.
4）Hot plugging and unplugging is only available for TGX devices.

Main Features:

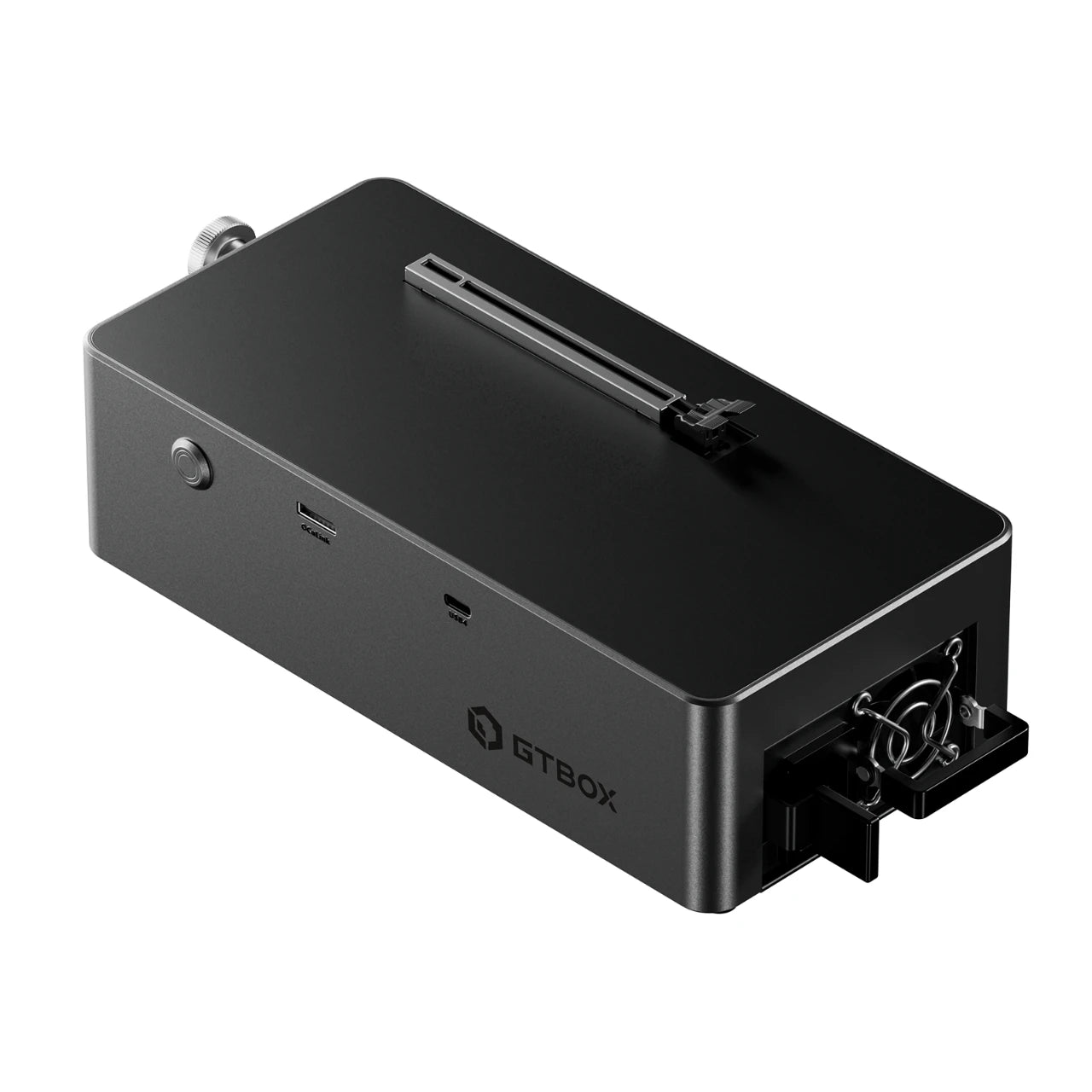

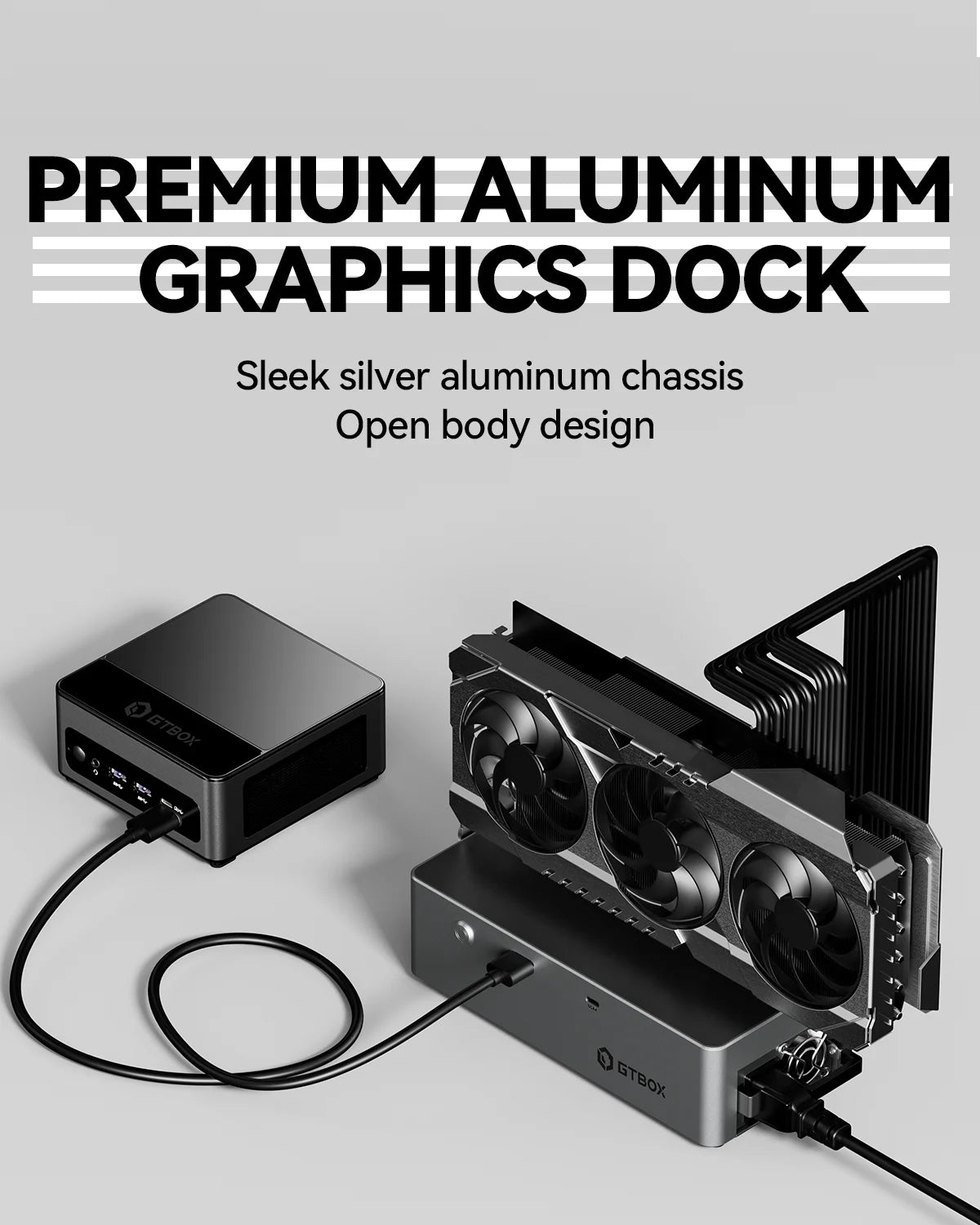

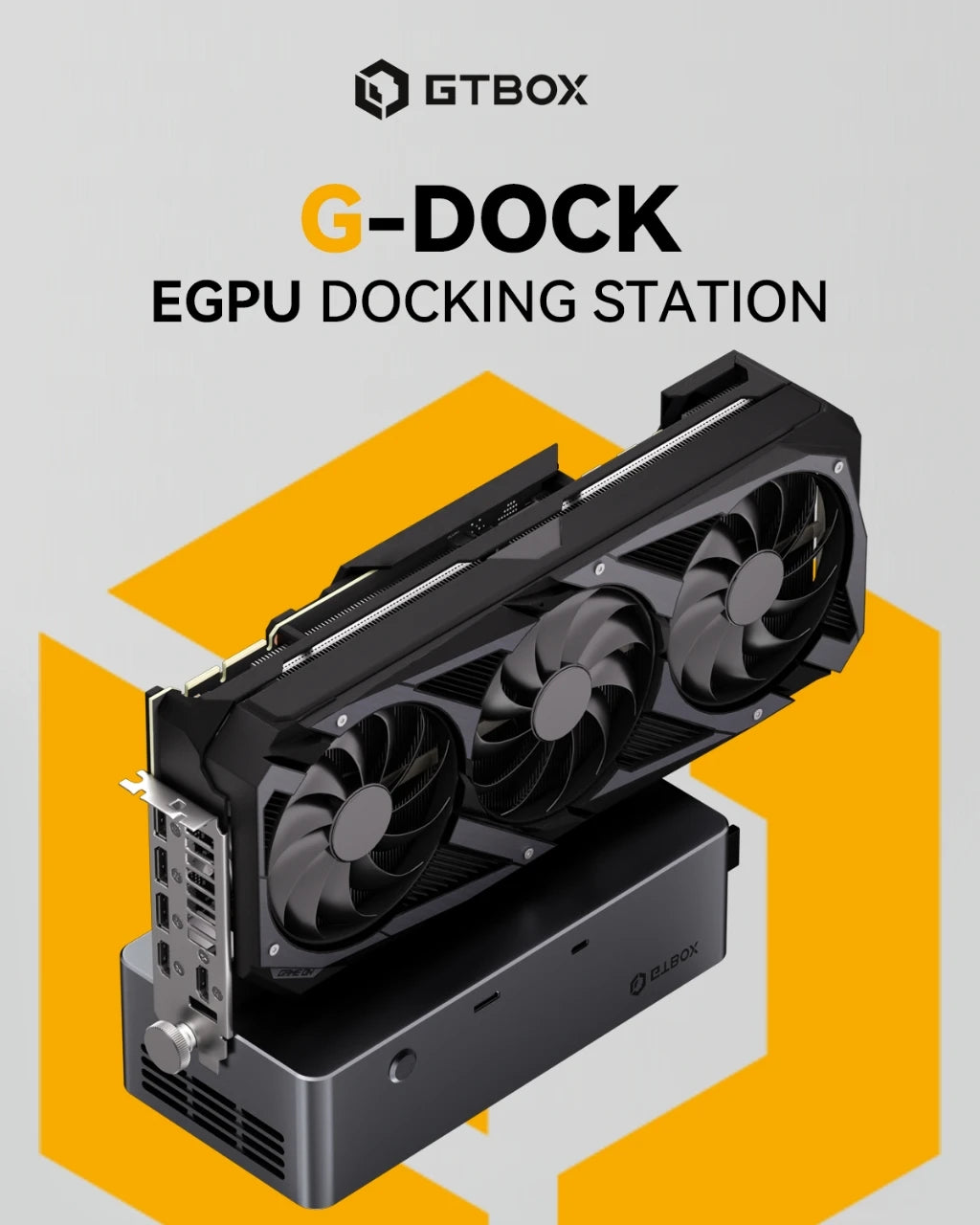

GTBOX G-DOCK EGPU Dock adopts an open metal body design, an aluminum alloy profile middle frame, and measures 22.5 x 11 x 6cm, 1.5KG, and the graphics card is not limited in length.

800W Power:

GTBOX G-DOCK has a built-in customized Huntkey 800W power supply, which can realize the power supply one-line communication and comes with a hub design.

Compatible with

GTBOX G-DOCK is compatible with most of the EGPUs on the market today.

OCuLink & TGX Ports

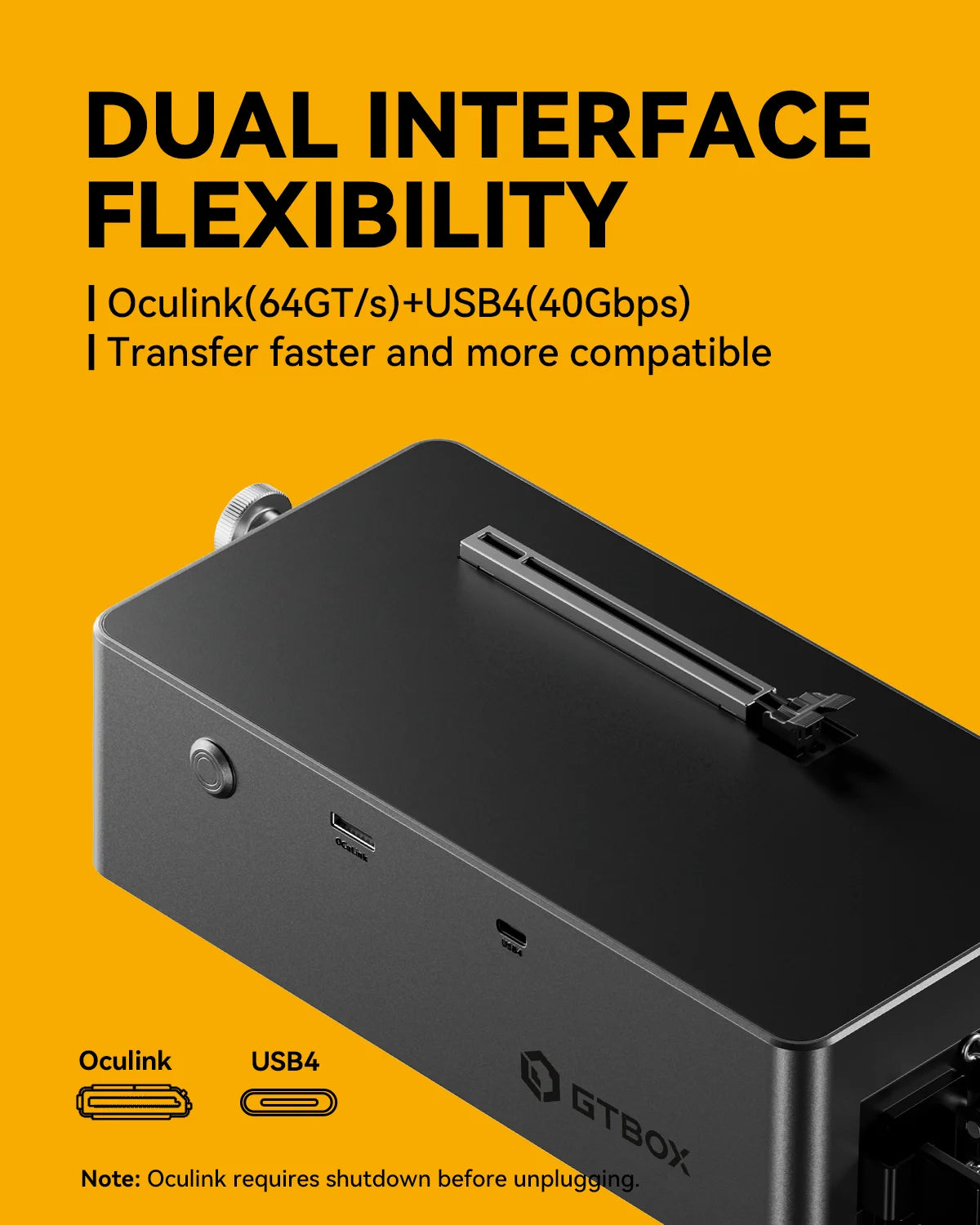

The OCuLink interface provides 64Gbps of effective bandwidth for PCIe 4.0 x4 lanes, and the dock is hot-swappable for the TGX interface of the 2024 Lenovo ThinkBook 14+ / 16+ Core Edition laptops.

Specification:

Power:800W

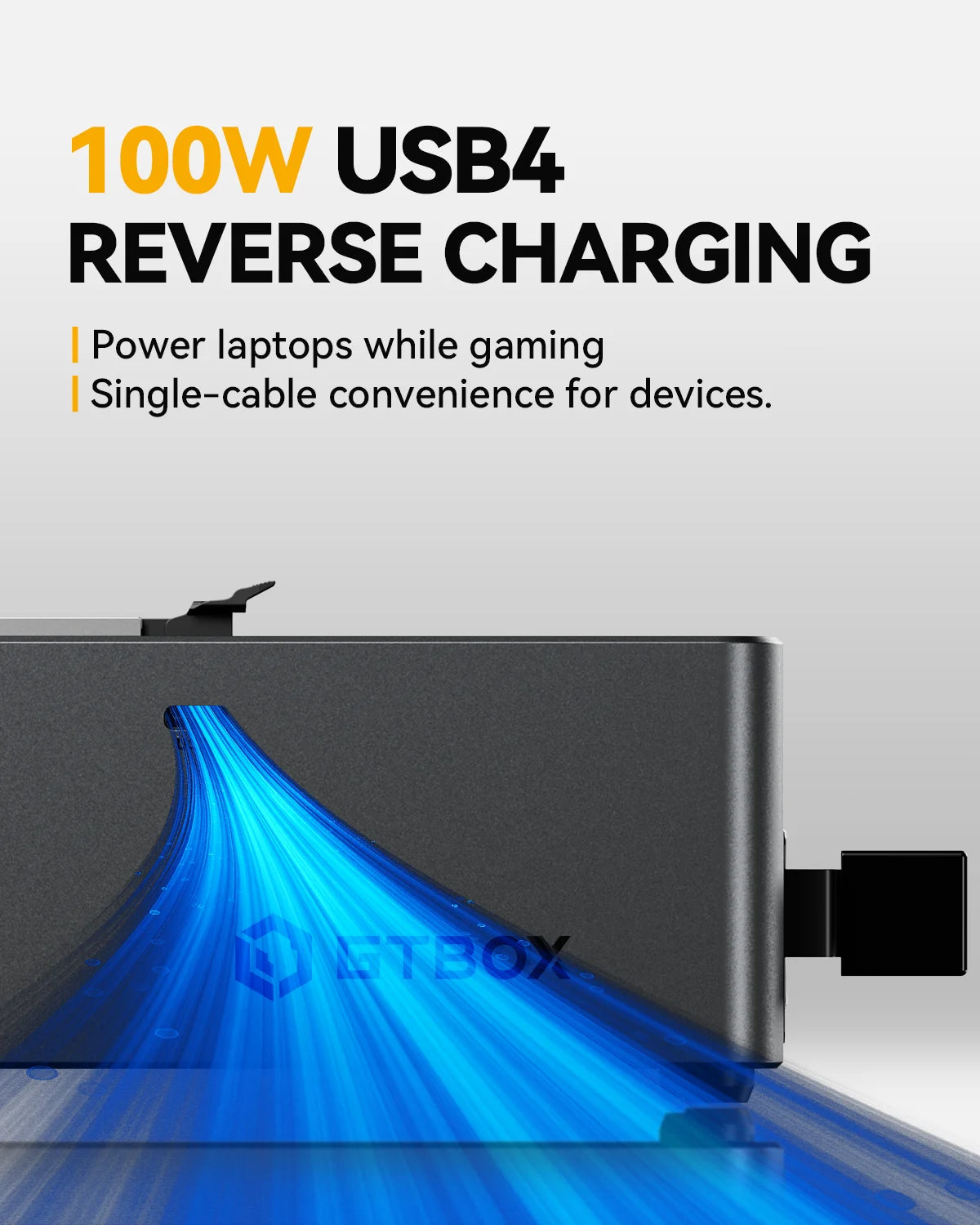

Interface configuration:  1 OCuLink interface, 1 X USB4 port ）2 x 8-pin graphics card power connectors

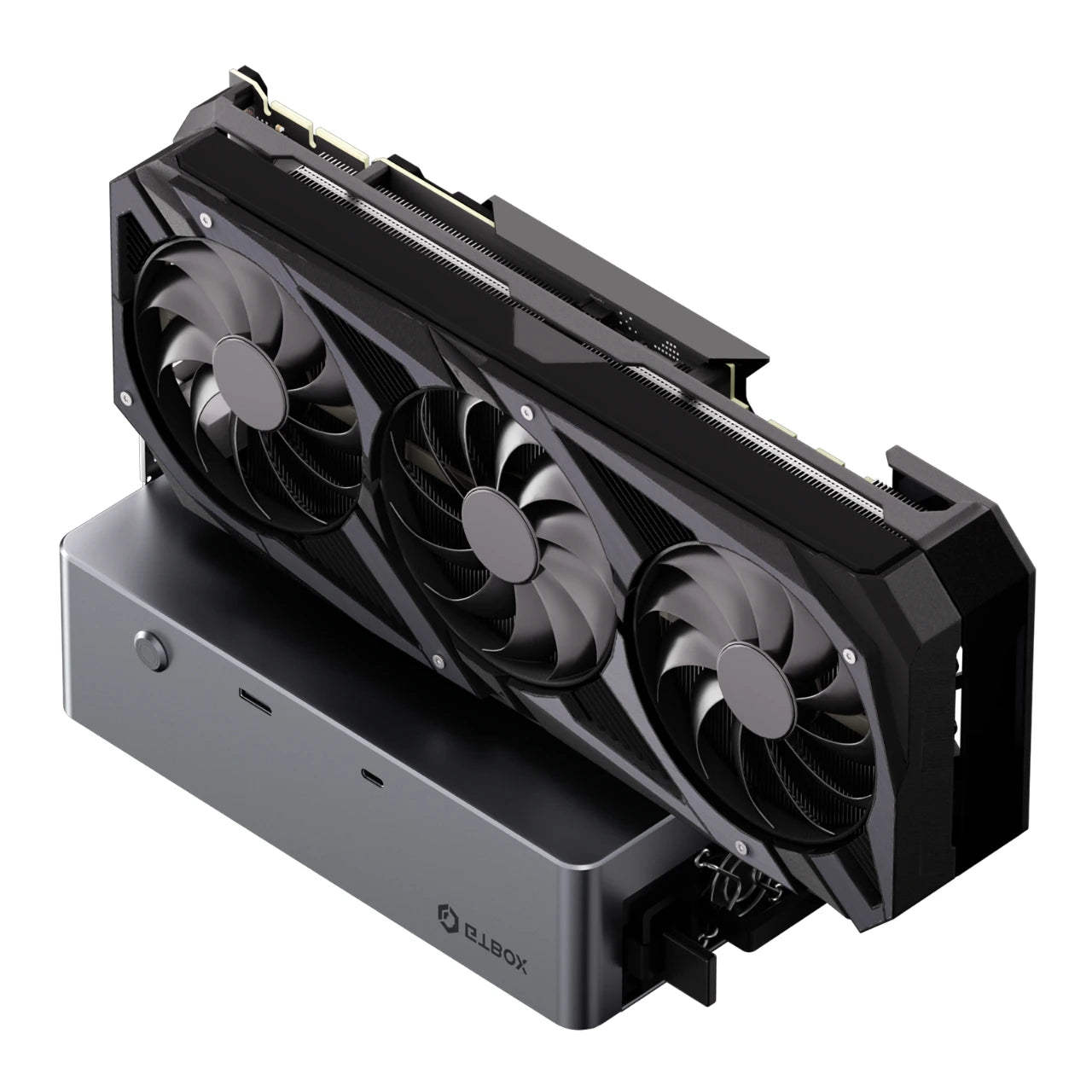

Device support:Built-in PCIE x16 interface, the maximum power consumption of the graphics card supports 600W, which basically meets the needs of most existing graphics cards
Power input: AC 220V~ 50/60Hz
OS:Support Windows (Win 11 22h2 or higher recommended)
Size: 22.5CM*11CM*6CM

What In Box

• 1 x GTBOX G-DOCK EGPU Dock

• 1 x Oculink cable

• 1 x Power supply

• 2 x Switch Cable

• 1 x USB4 cable

• * The GPU is not included.
