JGINYUE B650M Snow Dream AM5 DDR5 ARGB M-ATX Motherboard For Gaming PCIe 4.0×4 M.2 For CPU 9700X/9900X/7800X3D gaming pc DIY

$88.00 USD

~~$0.00 USD~~ $88.00 USD

Sale Sold out

Bundle Motherboards

Ships From CHINA

SPECIFICATIONS

Application: Desktop,Server,Workstation

Back I/O Ports: 1x RJ45

Battery Included: Yes

Brand Name: TFDP

Chipset: AMD B650

Chipset Manufacturer: AMD

Choice: yes

Form Factor: Micro-ATX

Hign-concerned Chemical: None

Maximum Ram Capacity: 96GB

Number Of Memory Slots: 2

Number of PCI: 0

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: Yes

Ports: USB 3.0

Processor compatibility: AMD Others

RAID Supported: No

Socket Type: Socket AM5

Special Features: RGB

Storage Interface Type: U.2,SATA,M.2 (NVMe)

Support Memory Type: DDR5

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Design,Video Production,Workstation

With CPU: No

Noted ：This motherboard did not including wifi ,if you want wifi version ,check this from this link :https://vi.aliexpress.com/item/1005009333233145.html?gatewayAdapt=glo2vnm

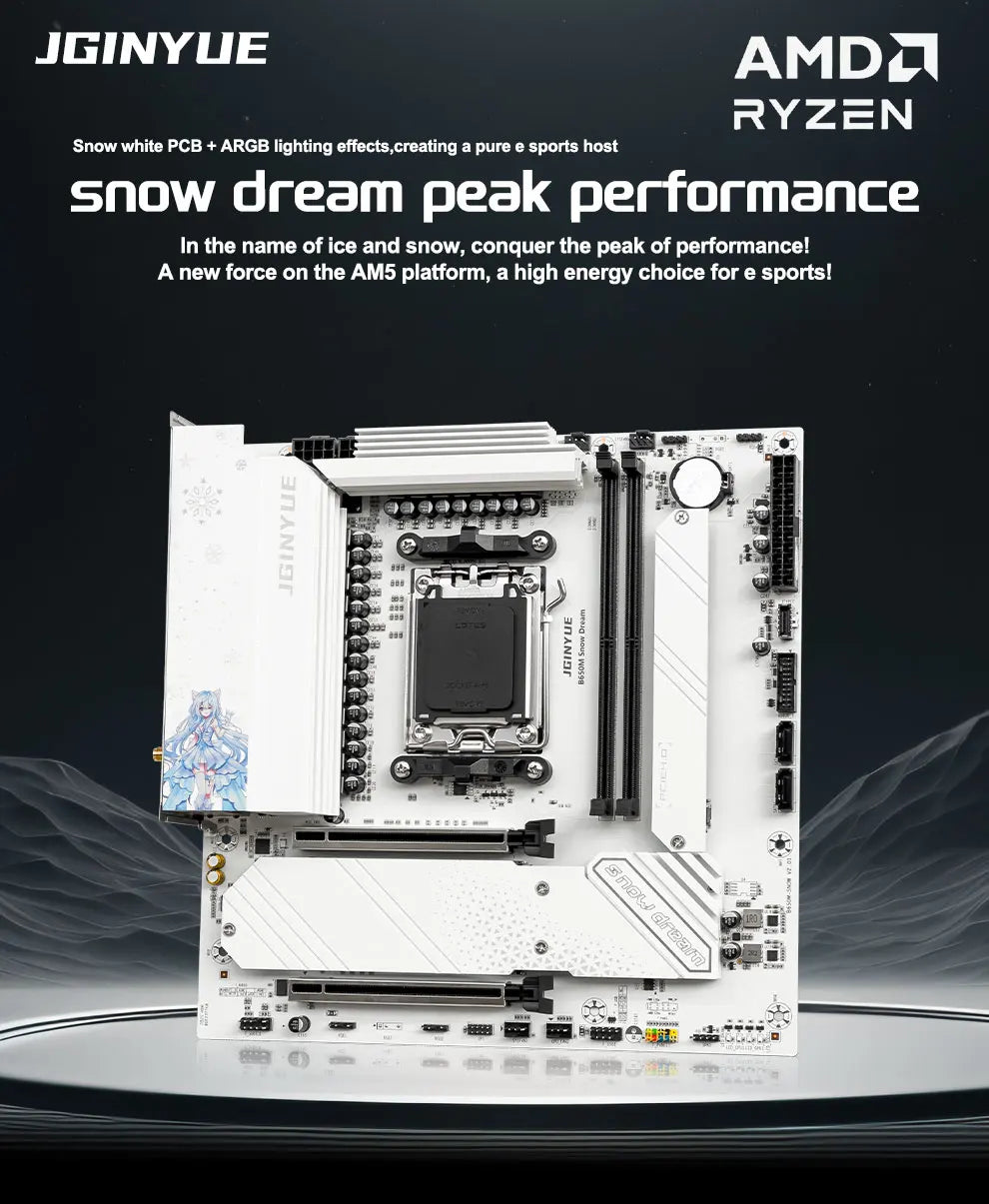

JGINYUE B650M Snow Dream motherboard

Supports AMD AM5 Ryzen 7000/8000/9000 series processors

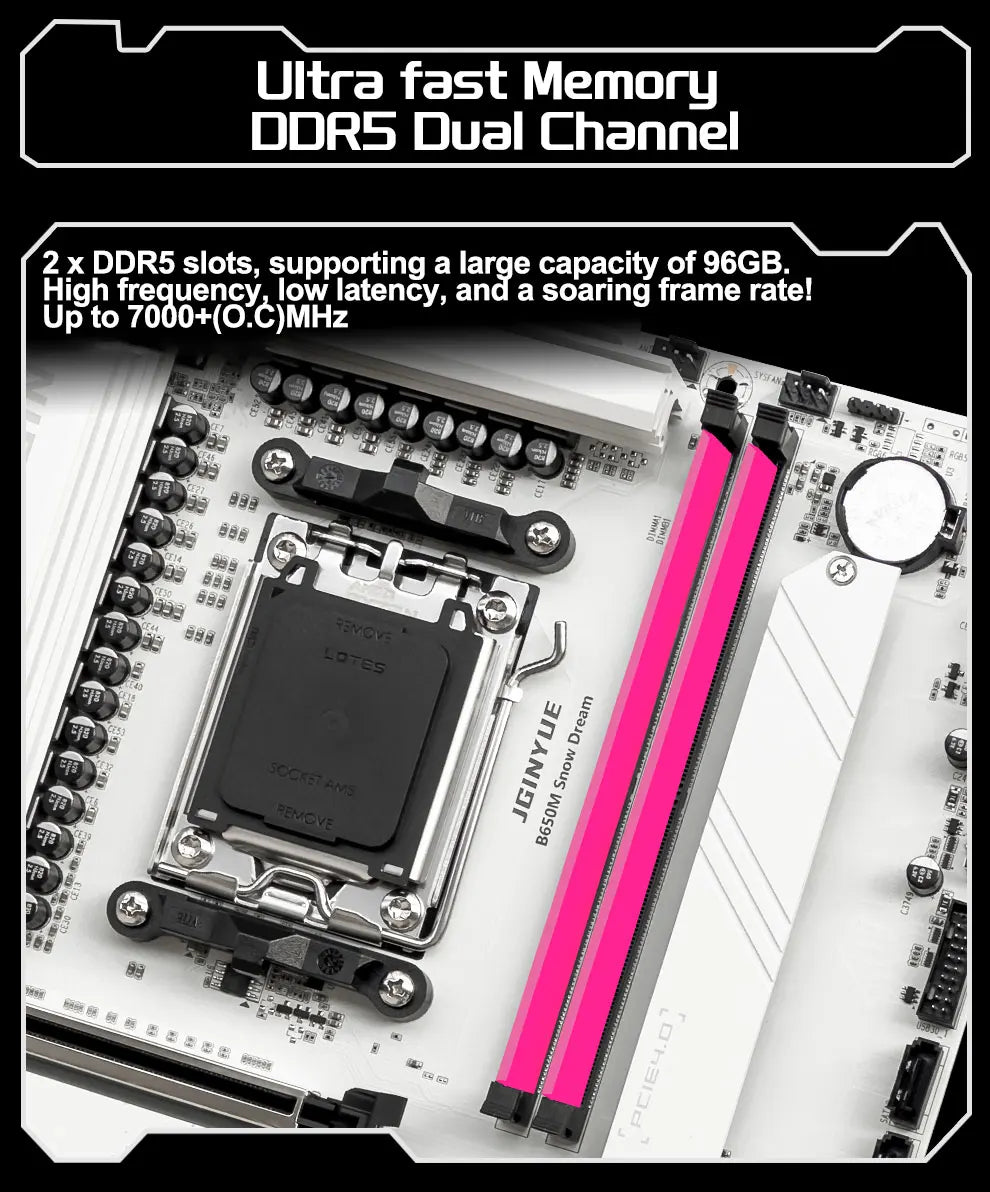

2xDDR5 capacity expandable up to 96G dual channel 4800~7000+(O.C) MHz
2xSATA3.0 3xM. 2 slots/supports PCIe 4.0x4
1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed
4xARGB 5V3 pin (MCU independent control chip)
1xType-E slot, expandable with 1 5Gbps Type-C interface
1xType-C slot 1x2.5G network interface diagnostic light
1xWiFi interface supports PCIE protocol module

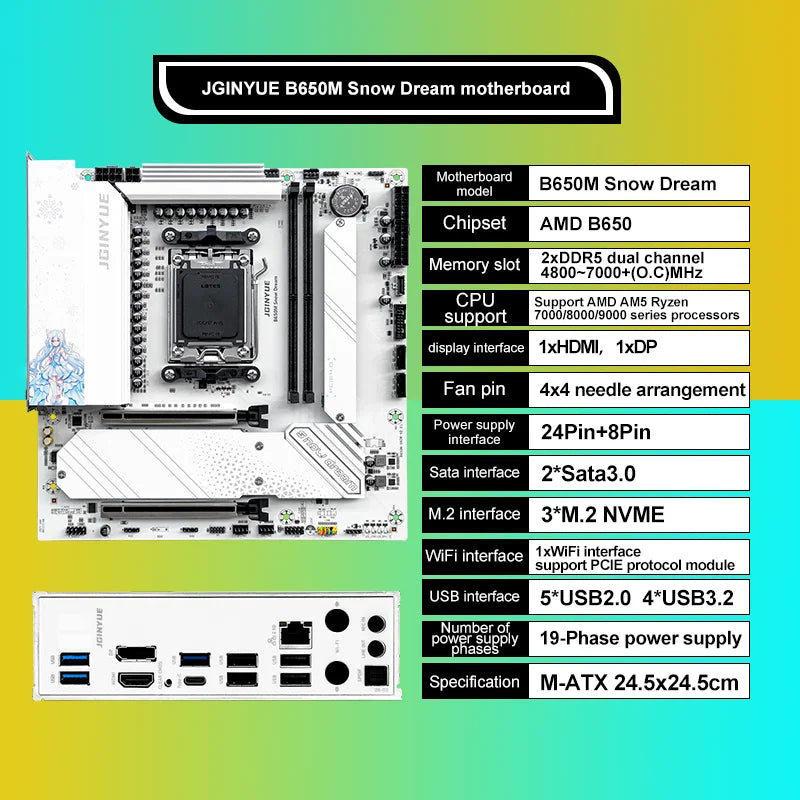

Motherboard modelB650M Snow Dream

CPU socketSupports AMD AM5 Ryzen 7000/8000/9000 series processors

chipsetAMD B650 chipset

Memory slot2xDDR5 dual channel

Memory capacity
96G

Memory frequency4800~7000+(O.C)MHz

Storage interface：
2xSATA3.0 3xM. 2 slots/supports PCIe 4.0x4

PCIe slot
:1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed

USB interface:4xUSB 2.0 3xUSB 3.2 1xUSB 2.0 pin bank expandable 2 USB 2.0 1xUSB 3.2 pin bank expandable 2 USB 3.2

ARGB needle arrangement
:4xARGB 5V3 pin (MCU independent control chip)

display interface:1xHDMI 1xDP

Type-C interface
