Station PC M3 Mini Gaming PC Free SDK Open Source 1080p/4k/8k Hd Display, 8-Core Processor Multiple Interfaces RK3588S
Station PC M3 Mini Gaming PC Free SDK Open Source 1080p/4k/8k Hd Display, 8-Core Processor Multiple Interfaces RK3588S
Couldn't load pickup availability
SPECIFICATIONS
Accessory Type: Flat Wire Cable
Battery Included: No
Brand Name: MiiBestOD
Compatible With: /
Hign-concerned Chemical: None
Model: Station M3
Origin: Mainland China
RAM&Storage: 4G LPDDR4 32G eMMC,8G LPDDR4 64G eMMC,16G LPDDR4 128G eMMC,16G 256G
|
Basic Specifications |
|||
|
CPU |
RK3588S Octa-core 64-bit CPU, clock speed up to 2.4GHz, Mali-G610 MP4 GPU NPU computing power up to 6 TOPS |
||
|
Video Decoding |
8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 |
||
|
RAM |
4GB/8GB/16GB LPDDR4 |
||
|
Storage |
32GB/64GB/128GB/256GB eMMC |
||
|
Storage Expansion |
M.2 SATA3.0 (2242) ×1 Support SATA3.0 SSD (default) Compatible with PCIe2.0 NVMe SSD TF card slot ×1 |
||
|
Hardware Specifications |
|||
|
Wireless |
2.4GHz / 5GHz dual-band WiFi, 802.11 a/b/g/n/ac protocol, Bluetooth4.2 |
||
|
Ethernet |
1000Mbps Ethernet (RJ45 ) ×1 |
||
|
Video Output |
HDMI2.1 (8K@60fps or 4K@120fps) ×1 DP1.4 (USB-C multi-function port, 8K@30fps) ×1 |
||
|
Audio Output |
3.5mm audio jack ×1 |
||
|
USB |
USB3.0 (current limit: 1A) ×1 USB2.0 (current limit: 500mA) ×1 USB-C multi-function port (USB3.0 OTG/DP1.4, current limit: 2A) ×1 |
||
|
Power |
DC12V input (5.5×2.1mm, recommend 12V/1.5A or above) |
||
|
OS/Software |
|||
|
OS |
Station OS (default) Support Android, Ubuntu and more |
||
|
General |
|||
|
Dimension |

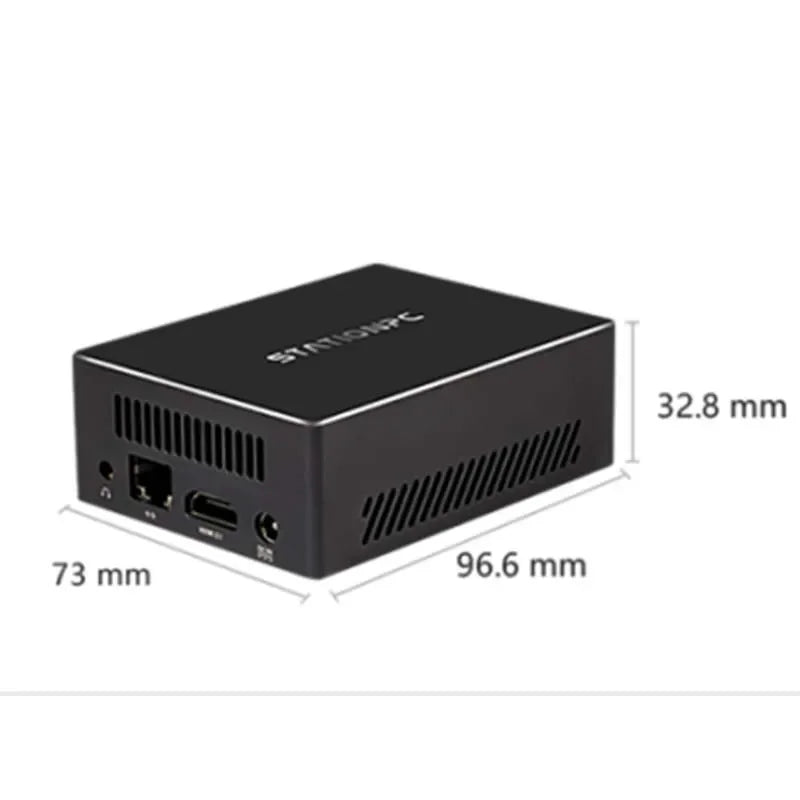

96.6mm×73mm×32.8mm |
||
|
Button |
Power button ×1 Recovery button (at the bottom of the 3.5mm audio jack) ×1 |
||
|
Power Consumption |
Idle: ≈0.42W (12V/35mA) Typical: ≈3W (12V/250mA) Max: ≈14.4W (12V/1200mA) |
||
|
Environment |
Operating Temperature: -20℃～60℃ Storage Temperature: -20℃～70℃ Storage Humidity: -40%～70 % |
||
